Card Packaging Solutions
CHANFER offers 6 proven packaging methods for game cards, trading cards, and board game components. Each method is available as a complete integrated production line — from automatic card feeding to robotic palletizing.

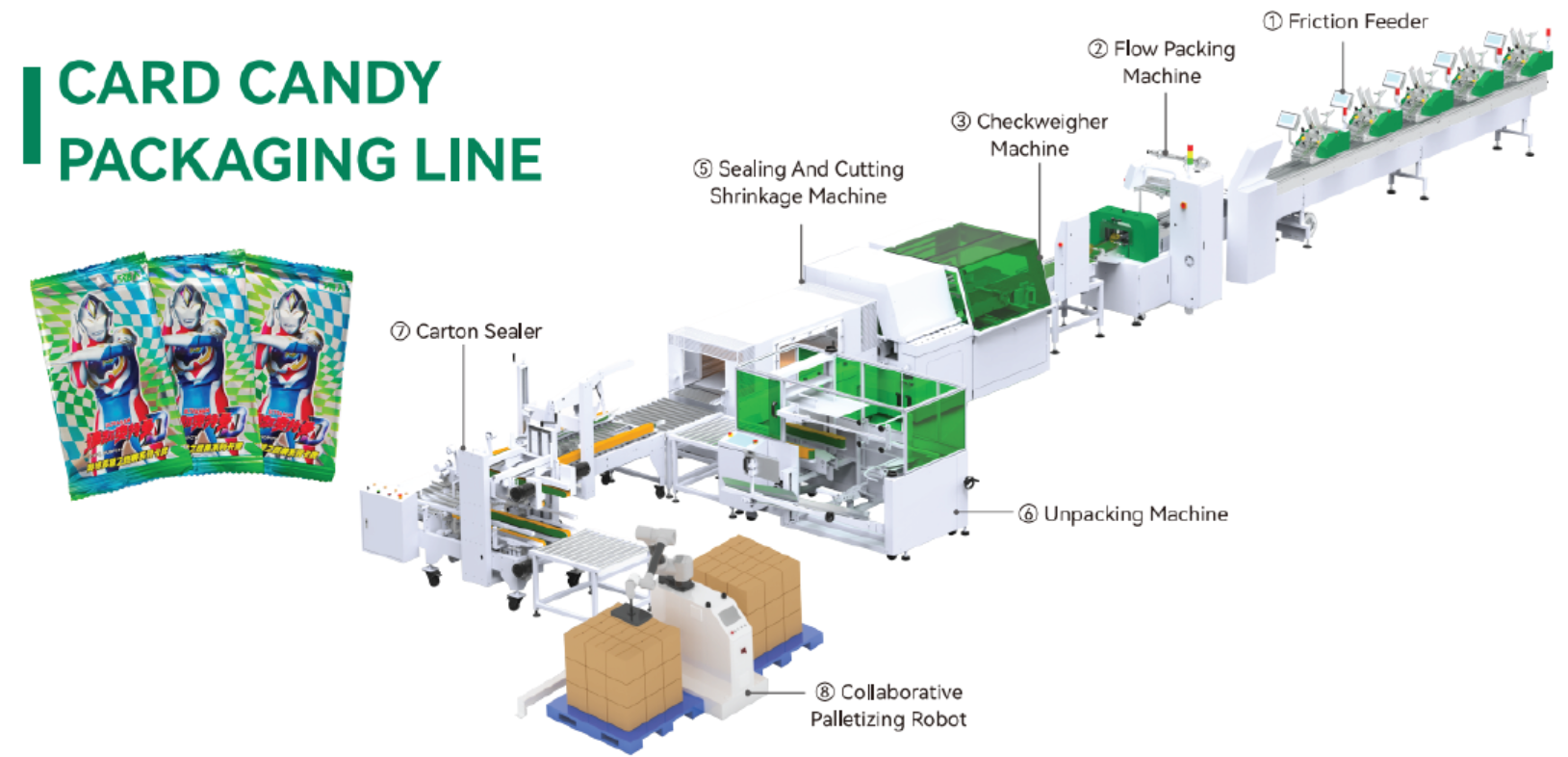

Candy Packaging
Card Candy Packaging
High-speed pillow-style flow wrapping — the most popular method for trading card game (TCG) booster packs and collectible card sleeves. Produces a sealed candy-style wrapper at speeds up to 220 bags/min.
Key Features
- Servo-controlled bag length — set and cut, no empty travel
- High-sensitivity photoelectric sensor tracking for precise sealing
- Up to 60 packaging parameter presets stored on HMI
- Anti-misoperation: auto-reverse when product switches
- No-film auto-stop to prevent waste
Ideal For
Watch in Action

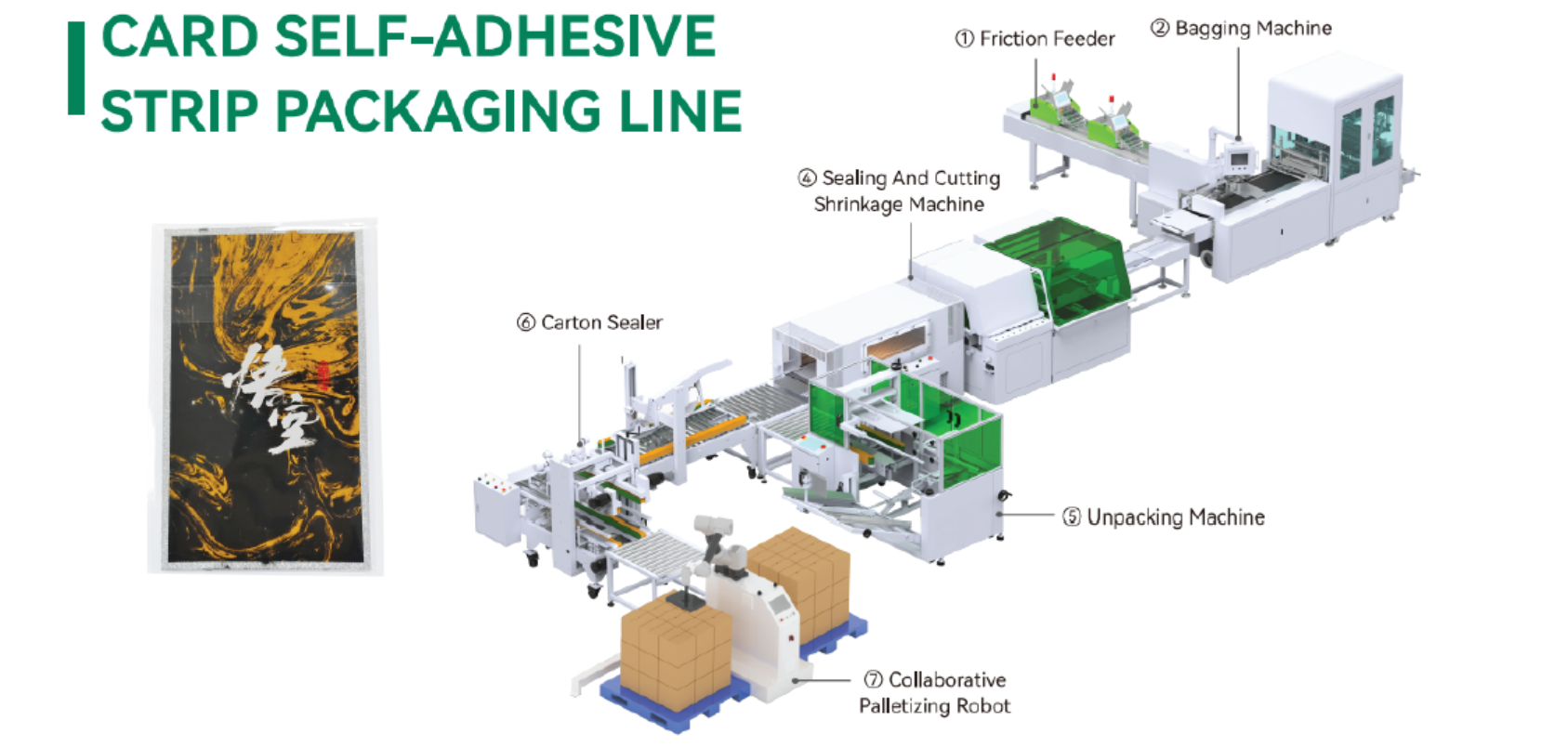

Self-Adhesive Strip Packaging
Card Self-Adhesive Strip Packaging
Reclosable self-adhesive strip bags — ideal for premium card products requiring re-sealability. Each bag features a peel-and-seal strip for repeated opening and closing, protecting card quality during retail display and consumer use.
Key Features
- Three sealing methods: self-adhesive, hot-cut, or hot-press
- Automatic correction to reduce packaging loss
- Anti-air-bag detection — no material, no film wasted
- Freely adjustable bag width for multi-spec products
- One-click reset and bidirectional position control
- Point memory for accurate counting and batch packing
Ideal For
Watch in Action

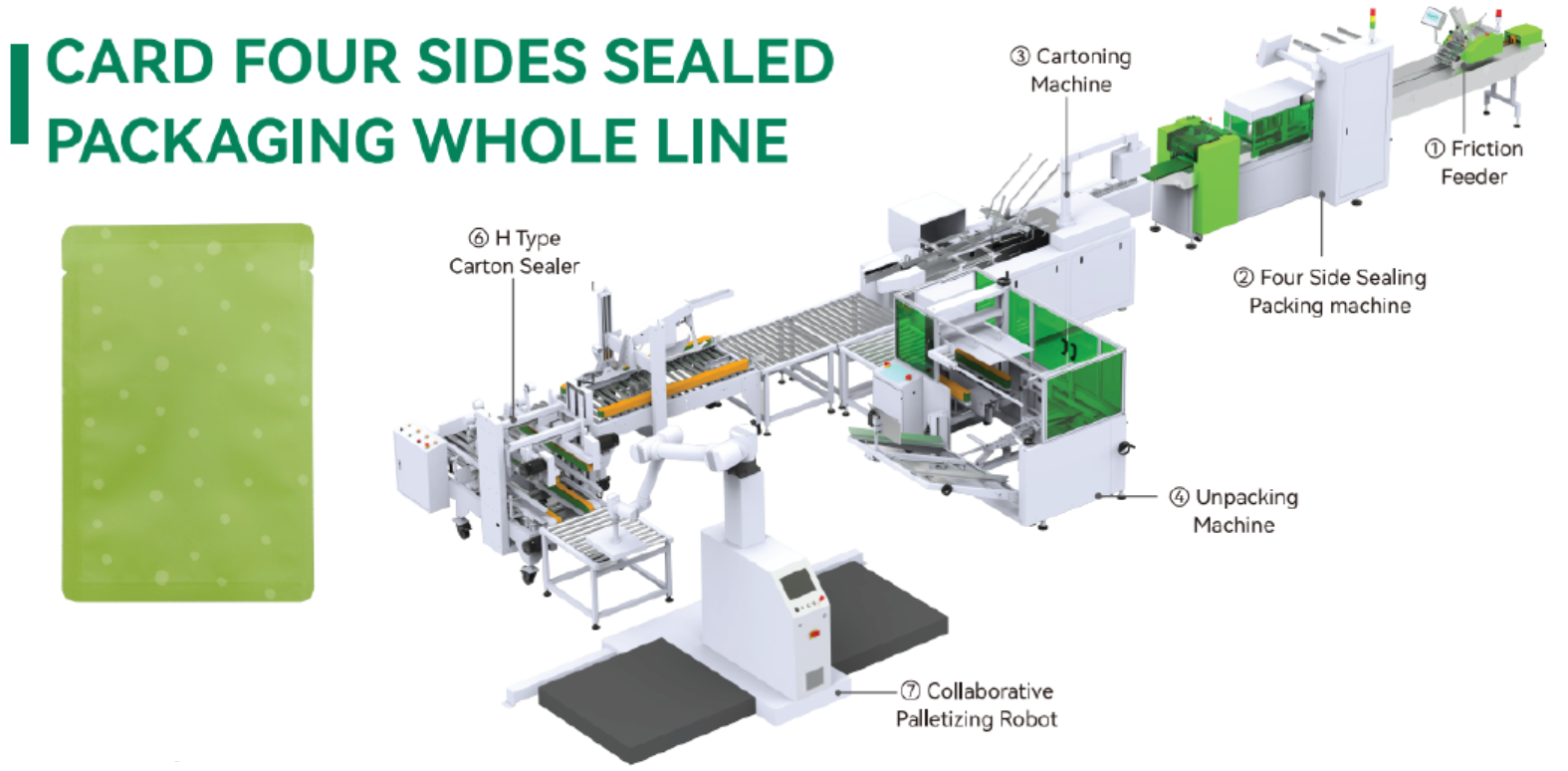

Four-Sides Sealed Packaging
Card Four Sides Sealed Packaging
All-four-edges heat-sealed packaging — delivers a premium, tamper-evident presentation. The fully sealed edges protect against moisture and contamination, making it the preferred choice for high-value trading cards and collectible products.
Key Features
- Seven servo motors for ultra-stable operation
- Three-color electric eye tracking for precise text/image alignment
- Unique reciprocating cutting & heat-sealing technology
- High-speed sealing — firm and stable at 150 packs/min
- PLC programmable control with touch-screen HMI
Ideal For
Watch in Action

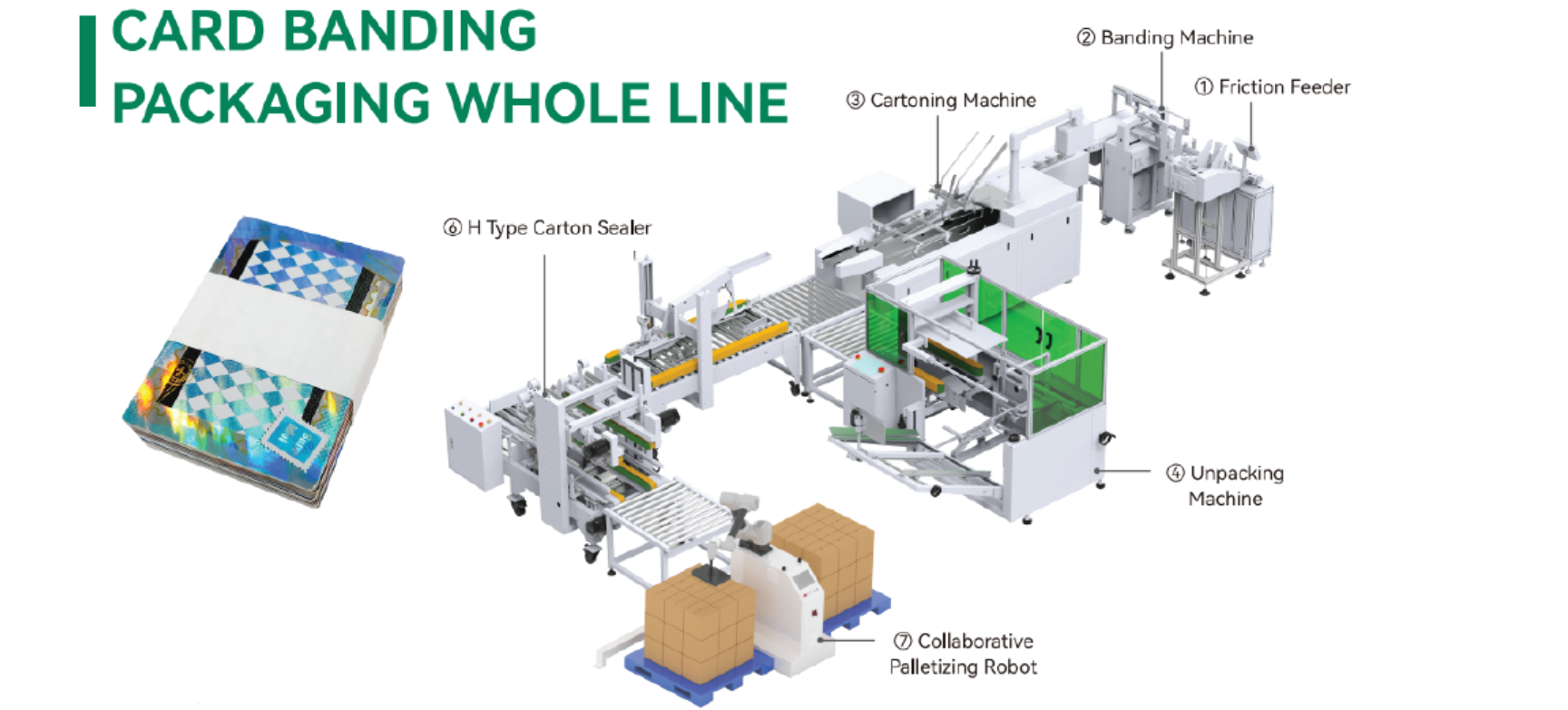

Banding Packaging
Card Banding Packaging
Eco-friendly paper band bundling — the most sustainable packaging method for card decks. Uses minimal material while maintaining secure bundling, ideal for board game card decks and standard playing card sets.
Key Features
- Servo motor drive with PLC control and touch screen
- Automatic card issuing + belt tying in one operation
- Photoelectric control for automatic dispensing & bundling
- Multiple function settings: card quantity, material, belt alarm
- Product thickness range: 0.1–3mm
- Max product size: 100×150mm
Ideal For
Watch in Action

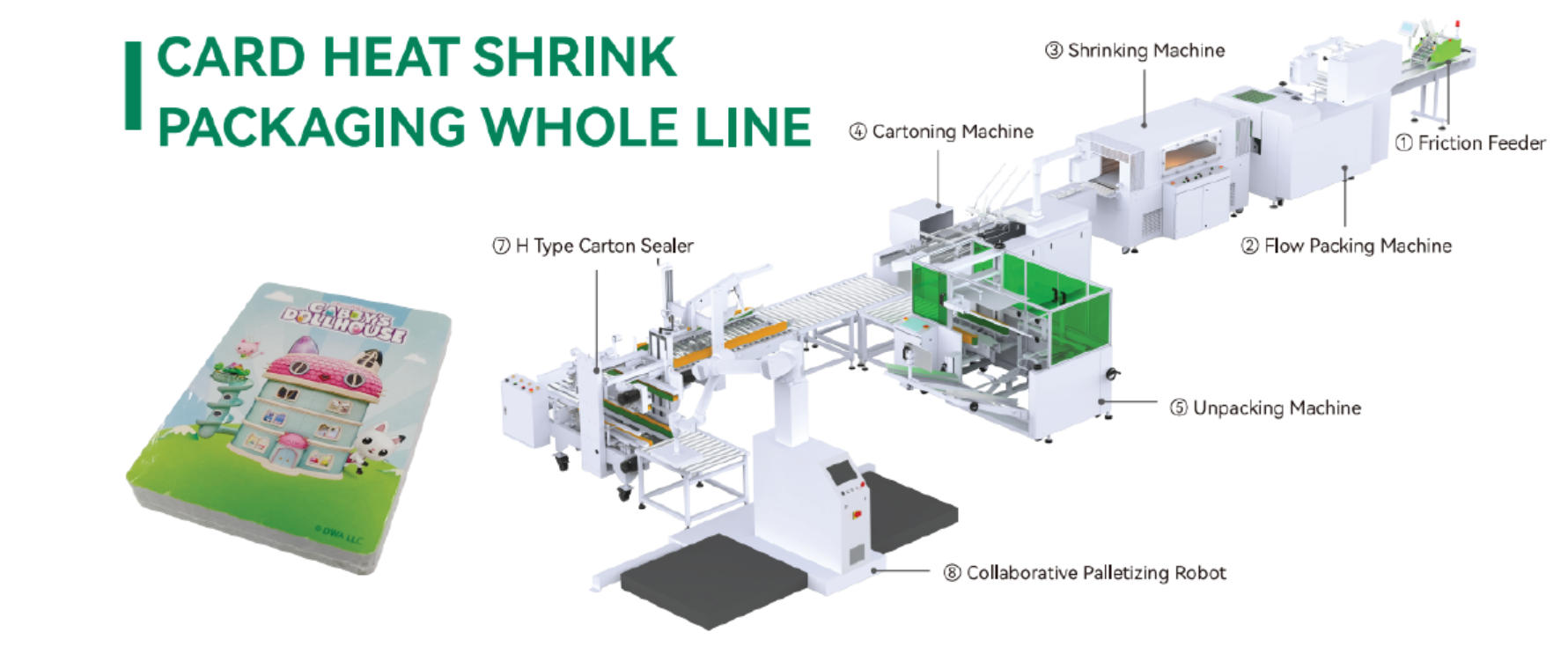

Heat Shrink Packaging
Card Heat Shrink Packaging
Tight-fitting shrink film wrapping — provides 360° product visibility while offering excellent protection. The shrink film conforms tightly to the product contour, creating a professional retail-ready presentation for card boxes and bundled products.
Key Features
- Imported detection photoelectric for thin/small packaging
- Automatic feeding with electric eye + timer length adjustment
- Sealing knife auto-protection prevents accidental cuts
- Film up-down synchronization mechanism corrects deviation
- Adjustable hot air direction for beautiful sealing lines
Ideal For
Watch in Action

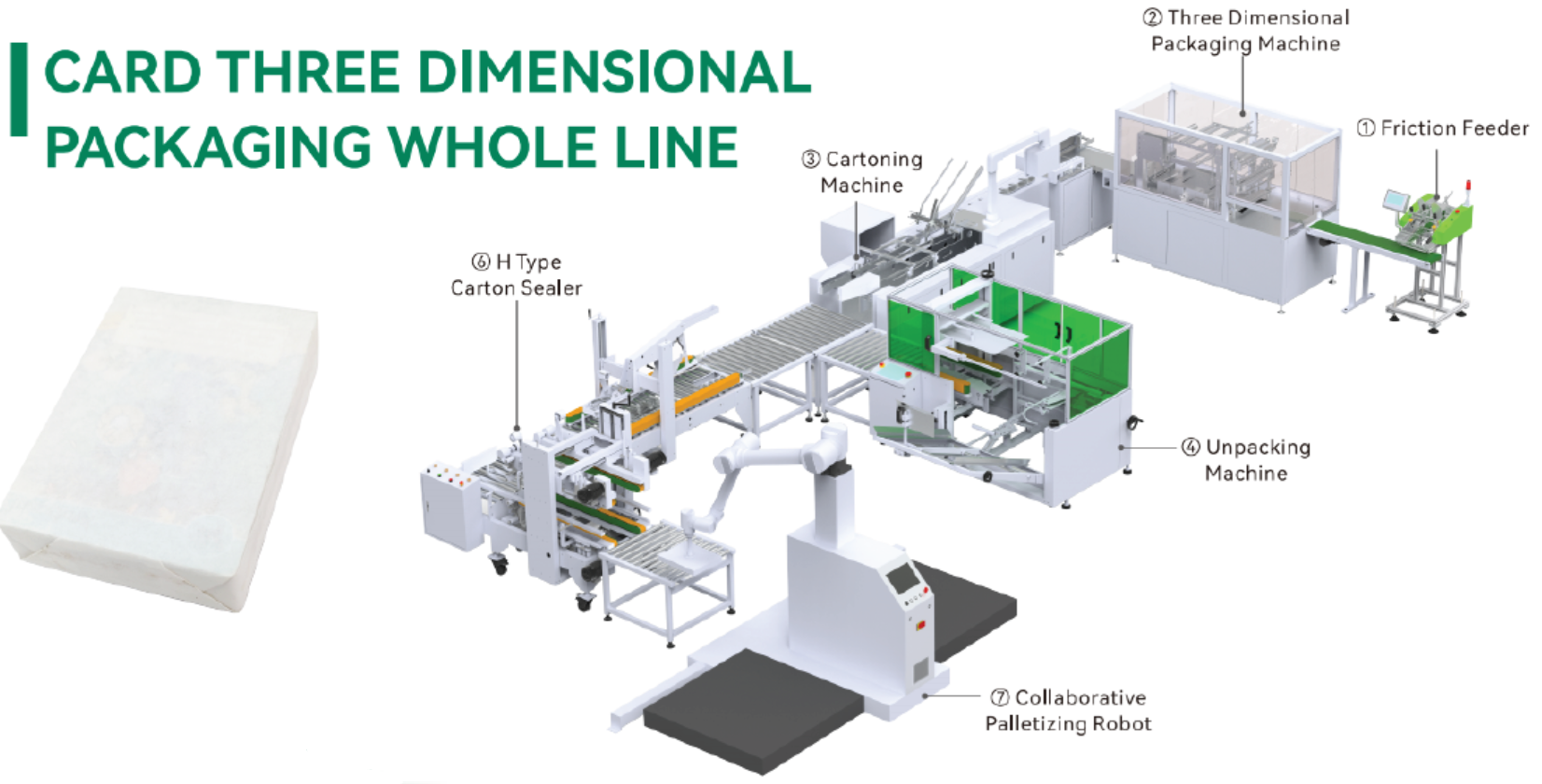

Three-Dimensional Packaging
Card Three-Dimensional Packaging
Box-style 3D wrapping — creates a rigid, box-like package from a single sheet of film. This method delivers a premium presentation with sharp edges and a solid feel, perfect for high-end collector products and gift sets.
Key Features
- Creates rigid, box-like packaging from flat film
- Sharp edges and premium presentation
- Suitable for thick products (up to 65mm height)
- Servo-controlled for consistent quality
- PLC programmable with touch-screen interface
Ideal For
Watch in Action
Not Sure Which Packaging Method Fits?
Our engineers will analyze your card product specifications and recommend the optimal packaging method and line configuration.
Get Free Consultation
